How To Make A Siding Brake: DIY Metal Bending Guide -

Build a simple, accurate siding brake using steel, hinges, and a hand seamer.

I have built and used multiple shop-made tools and know how to make a siding brake that is strong, precise, and cost-effective. This guide walks you through clear steps, materials, design choices, and safety tips so you can confidently build a siding brake that fits your projects and skill level.

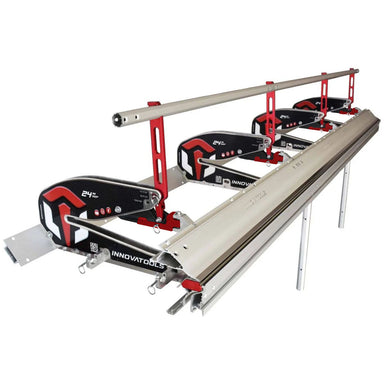

What is a siding brake and why build one

A siding brake is a metal bending tool designed for cold-forming siding panels, flashing, and trim. It holds a sheet of metal and forms straight bends along its length. Knowing how to make a siding brake helps you customize width, bending angle, and capacity for vinyl, aluminum, or thin steel siding.

Common uses include forming drip edges, Z-flashings, and small custom trim. Building your own lets you control size and save money compared to buying a commercial brake. It also teaches valuable metalworking skills and enables fast on-site adjustments.

Tools and materials needed to make a siding brake

Choose durable parts to get accurate bends and long life. Below is a practical list for a shop-built siding brake.

Materials

1/4-inch steel plate for the base, sized to your desired brake length.
1/8- to 3/16-inch steel for bending leaf and clamping bar.
Heavy-duty piano hinge or two parallel hinges rated for shop use.
Angle iron or square tubing for support ribs.
Hex head bolts, lock nuts, and hardened washers.
Steel rod or shaft for hinge reinforcement if needed.
Rubber or wood handle for comfortable operation.
Paint or rust-preventive coating.

Tools

Angle grinder or metal saw for cutting steel.
Drill and bits for metal.
Welding machine (MIG or stick) or high-strength bolts for assembly.
Square, tape measure, and combination set.
Clamps and a vise for assembly and alignment.
Hand seamer or small mallet for test bends.

Step-by-step: How to make a siding brake

Follow these steps to build a functional siding brake. Each step is simple and keeps alignment tight.

Plan the brake length and bending capacity

Decide the maximum panel width and material thickness you will form.
Typical shop-built brakes are 24 to 48 inches long and bend up to 22 gauge steel or 0.040-inch aluminum.

Cut and prepare the base

Cut a 1/4-inch steel plate to your chosen length and width.
Square the edges and mark centerlines for hinge placement.

Fabricate the bending leaf and clamping bar

Cut the bending leaf from 3/16-inch steel. Make it the same length as the base.
Cut the clamping bar from 1/8-inch steel to match the leaf width.
Chamfer or file the edges to prevent nicking siding.

Attach hinges and set alignment

Align the bending leaf next to the base with a 1/8- to 1/4-inch gap for material thickness.
Mount a piano hinge along the length where leaf meets base. Use bolts or weld for strength.
Ensure the hinge axis is straight to prevent twisting during bending.

Add support ribs and stops

Weld or bolt angle iron ribs under the base to prevent flexing when pressure is applied.
Add a removable stop plate to control bend angle or to repeat identical bends.

Fit the clamping bar

Install the clamping bar above the leaf using bolts that allow tightening by hand or with a wrench.
Use slots instead of round holes to let the clamp shift for even pressure.

Reinforce hinge and handle

Install a steel shaft or rod through hinge barrels for extra strength on long brakes.
Attach a handle to the leaf to lift and lower it smoothly.

Test and adjust

Start with scrap metal. Tighten the clamp and make small test bends.
Adjust hinge alignment, clamp pressure, or add packing strips to get clean bends.

Final finish

File sharp edges and paint the brake to prevent rust.

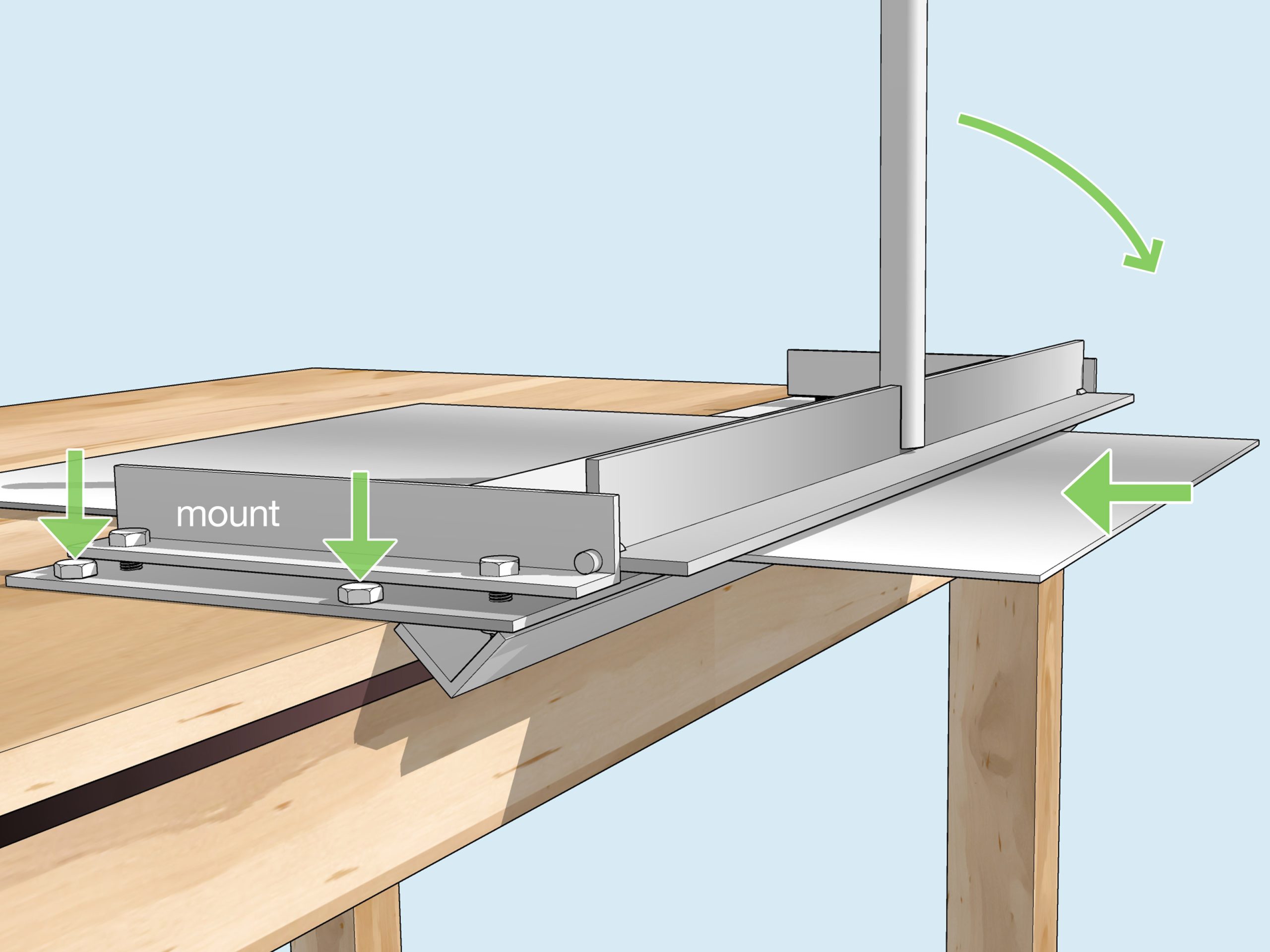

Add rubber feet or bolt the brake to a workbench for stability.

Design variations and measurements

Design choices depend on the materials and parts you will form. Keep designs simple and modular.

Common variations

Bench brake: A short brake mounted to a bench. Good for trims and short pieces.
Hand brake: A lighter brake that you lift by hand. Works for thin aluminum siding.
Box-and-pan brake style: Adds fingers for complex box bends. Requires careful spacing.

Key measurements

Brake length: Choose a length that suits your longest pieces. Longer brakes need stronger ribs.
Clamp gap: Set the clamp gap slightly larger than your thickest siding.
Hinge offset: Keep the hinge axis close to the clamp edge to reduce twisting.
Bend radius: A small radius is fine for thin aluminum. Steel may require a larger radius to avoid cracking.

Practical example

For aluminum trim up to 0.032 in, build a 36-inch brake with a 1/8-inch clamp gap and 3/16-inch bending leaf thickness. Reinforce with two 1/4-inch ribs.

Safety, testing, and maintenance

Safety keeps your brake reliable and your work safe. Simple checks prevent accidents.

Safety steps

Wear gloves and eye protection when cutting, welding, or bending metal.
Secure the brake to a bench so it does not move during use.
Keep hands clear of clamp jaws when lowering the leaf.

Testing routine

Test on scrap before bending a finished part.
Inspect hinges and bolts for looseness after every few uses.
Check for metal fatigue or cracks around welded areas.

Maintenance tips

Tighten bolts and re-weld as needed to maintain rigidity.
Lubricate hinge pins with light oil to keep movement smooth.
Repaint exposed steel to prevent rust.

Limitations and warnings

Home-built brakes are not substitutes for heavy industrial brakes for thick gauge steel.
Do not attempt high-capacity bends without proper reinforcement and design calculation.

Costs, benefits, and limitations of a DIY siding brake

Building your own brake has clear pros and cons. Consider these before starting.

Benefits

Lower cost than commercial brakes for similar length.
Customizable to exact project needs and workspace.
Learning experience and hands-on control of quality.

Costs

Material costs vary; expect to spend for steel, hinge, and fasteners.
Tools such as welders add to initial expense if you do not already own them.

Limitations

Home-made brakes have limits on thickness and repeatability compared to pro brakes.
Precision hinges and fabrication matter. Poor alignment will produce uneven bends.

Tips, common mistakes, and personal experience

I built my first siding brake from leftover steel. I learned key lessons fast. These tips save time and rework.

Tips

Start with a short brake to learn bending behavior before building a long one.
Use slots for clamp bolts to allow adjustment and even pressure.
Reinforce the base with ribs if you plan long bends or thicker material.

Common mistakes

Mounting the hinge off-center, which causes twist during bends.
Using a weak clamping bar that flexes under pressure.
Skipping test bends and wasting finished material.

Personal insight

I once welded a hinge slightly crooked. It caused uneven bends until I ground and re-welded it. Take time to align parts before final welding. Small alignment checks early save hours later.

Frequently Asked Questions of how to make a siding brake(make it h2 tag)

What materials are best for a DIY siding brake?

Steel provides the best strength and durability. Use 1/4-inch for the base and 1/8- to 3/16-inch for the leaf and clamp for typical siding work.

How long should my siding brake be?

Choose a length based on your longest pieces. Common shop lengths are 24 to 48 inches; longer brakes require stronger reinforcement.

Can I bend aluminum siding with a homemade siding brake?

Yes. A homemade siding brake can bend aluminum up to typical siding thicknesses if the clamp gap and hinge alignment are correct.

Do I need a welder to make a siding brake?

A welder makes the build stronger and easier, but you can bolt components together if you design for strong bolted joints.

How do I avoid creases or uneven bends?

Ensure hinge alignment, even clamp pressure, and test with scrap metal. Use packing strips under the clamp if needed to distribute pressure.

Is a DIY siding brake safe to use on thick steel?

Not usually. Home-built brakes are best for light to medium thickness. For thick steel, use a factory-built brake rated for that gauge.

Conclusion

Building your own siding brake is practical, affordable, and empowering. You get a tool tailored to your needs and skills, and you learn useful metalworking techniques. Start with a clear plan, use the right materials, and test on scrap. With patience and proper alignment, your homemade siding brake will deliver accurate bends and reliable performance. Try a short prototype brake first, then scale up. Share your results, ask questions, or subscribe for more shop guides.
